New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump
New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump, Angle 2

PART # ENC-1207

TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump

SKU ENC-1207
$337.98
New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump, Angle 2
New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump, Angle 2

New TSP GM LS, LSX, Fabricated Oil Pan, Rear Sump

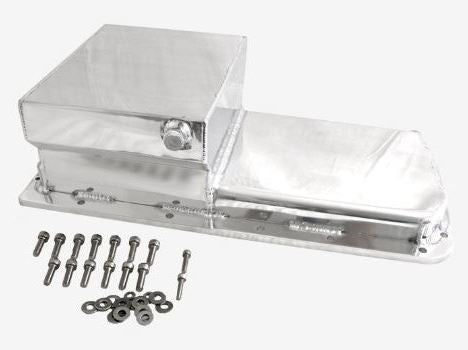

Newly designed TSP fabricated rear sump oil pan. If you are struggling with cross member interference on your LS swap, this may be the pan you need. Features anti slosh gate to keep oil at the pick up tube even in extreme conditions. This Pan is setup for remote oil filters with large AN 10 fittings. Fits all LS based GM engines, except LS7, LS9, or dry sump applications.

Sump Location: Rear
Pan Material: Aluminum
Sump Style: Wet
Gaskets: Not included See Part Number ENC-1203
Stroke Clearance: 4.125''
Oil Capacity: 7 Quarts
Baffle: Included
Windage Tray: NOT Included
Pickup: NOT included

For use on all LSX engines, but will not work with all vehicles based on cross member location. Please be sure that a rear sump pan is needed before ordering.

MAKE: Chevrolet, GMC, Pontiac
ENGINE TYPE: Chevrolet Small Block V8 Gen. III / IV LS-Based

Part Number: ENC-1207

Fabricated Aluminum Construction Fits GM based LSX engines
