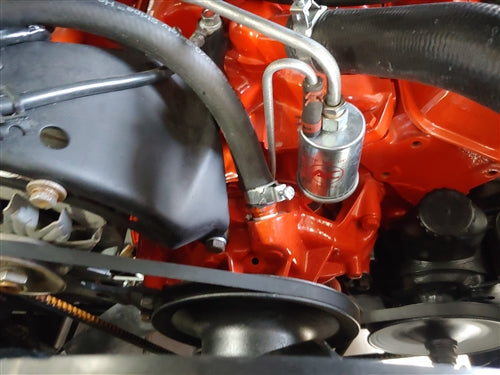

Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel, Angle 3

PART # FUE-92

1969 - 1970 Chevelle Fuel Pump To Carburetor Gas Line, 350/255 - 300hp, w/ Return, Choose Material

SKU FUE-92-OE
$37.95
Material:
Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel, Angle 2 Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel, Angle 3
Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel, Angle 2 Fuel Line Pump To Carburetor Line, 350/255-300hp, w/ Return, Original Material or Stainless Steel, Angle 3

1969 - 1970 Chevelle Fuel Pump To Carburetor Gas Line, 350/255-300hp, w/ Return, Choose OE Material or Stainless Steel

New 1969 - 1970 Chevelle 350/255-300hp, w/ Return, Fuel Pump to Carburetor Gas Line is now available. Choose either original style material or high grade stainless steel. This 69 - 70 Small Block Chevelle fuel pump to carburetor line connects the fuel pump to your carburetor. Complete 5 piece set includes, (3) Lines and (2) Clips!

Please Note ~ This line is designed to work with factory type fuel pump outlet locations and factory type carburetor outlet locations. Please confirm before ordering or you will surely have to modify.

Made in the U.S.A.

PART NUMBER: FUE-92-CH

4 Side Line Specs:
Diameter: 1/4" O.D.
Material: O.E. - Plated Mild Steel or 304L Stainless Steel
Tubing Wall: .028" Thickness
Endform 1: HB
Endform 2: HB
End-to-End Length: 18.5"
Pre-Bent Length: 24.25"
LH Line Specs:
Diameter: 3/8" O.D.
Material: O.E. - Plated Mild Steel or 304L Stainless Steel
Tubing Wall: .028" Thickness
Endform 1: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
Endform 2: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
End-to-End Length: 15.25"
Pre-Bent Length: 16.425"
Side Line Specs:
Diameter: 3/8" O.D.
Material: O.E. - Plated Mild Steel or 304L Stainless Steel
Tubing Wall: .028" Thickness
Endform 1: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
Endform 2: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
End-to-End Length: 8.75"
Pre-Bent Length: 13.49"
