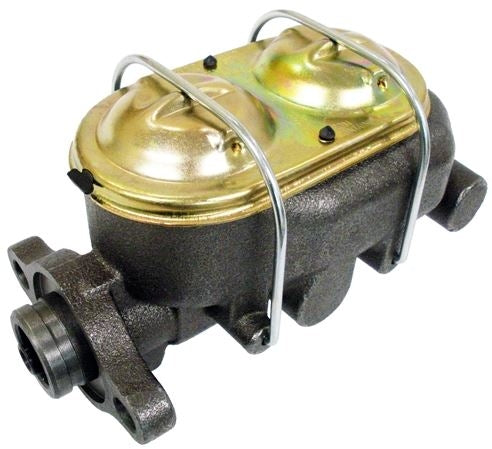

1967 - 1969 Chevelle or Nova Brake Master Cylinder for Front Power Disc and Rear Drum, Deep Pocket
New brake master cylinder for your 1967 - 1969 Chevelle or Nova. Exact fit for all models with front power disc brakes and rear drum brakes. Correct deep pocket with 1-1/8 inch diameter bore.
*This is a great master cylinder if your not concerned with part number stampings.
*Same as our BRC-147 but without part number casting marks on the sides.
Includes Bleeders on one side just like the original.
Bore Diameter: 1 1/8" or 1.125"
Body: Cast Iron w/ Cast Iron Finish
Lid: Oval Shape w/ Yellow Zinc Finish
Lid Attachment: Bail Wire
Reservoir: Dual
Mounting Flange: 2 Holes, 3.375" Spread On Center
Pushrod Pocket Depth: 1.75" or Deep Pocket
Outlet Port Count: 2
Front Outlet Port: 1/2"-20 Threads
Rear Outlet Port: 9/16"-18 Threads
Port Location: Driver's Side, 3.750" Apart
Front Port Supplies: Front Brakes
Product Dimensions: 8.00" L x 4.25" W x5.25" H
Centerline Height: 3.75" (Bore Center to Highest Point)
Condition: New
Fluid Compatibility: Dot 3, 4 or 5
Cup Included: Yes
PART NUMBER: BRC-144D
