1966 - 1972 Chevelle Wiring Diagram, Laminated in Color 11" x 17"

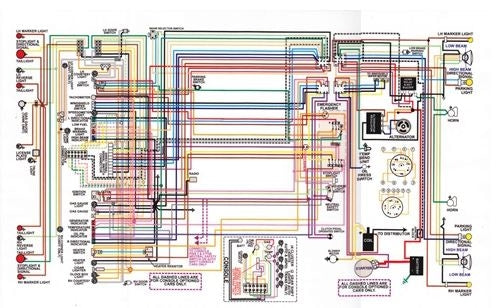

Wiring diagram for your 66, 67, 68, 69, 70, 71, or 72 model Chevelle. Overall measures about 11 inches tall and 17 inches wide. Laminated and in full color. This is very detailed with all the color coded wiring matching the same colors in your factory harness. This diagram covers the wiring from bumper to bumper, including interior. It has a durable laminated coating for easy clean up. This is easier to read than the old black and white wiring diagrams. Order yours today!
Note: 1970, 1971 and 1972 Chevelle models had two different style warning light dashes. The standard dash has a large rectangular shaped speedometer "sweep style". The other style had round gauge openings but NO tachometer and NO mechanical gauges.
***NOTE ~ Please choose your desired specific year model and options from the drop down menu!
PART NUMBER: LIT-4115
