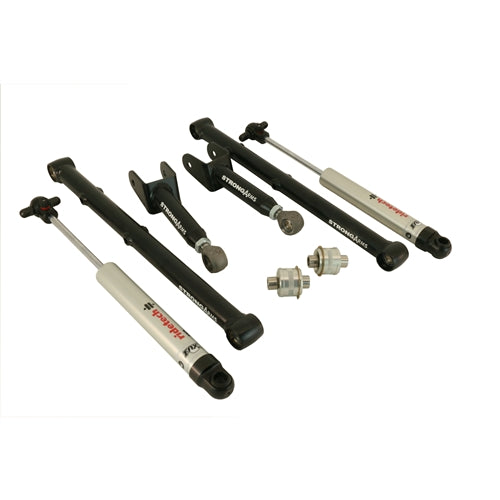

Tune up your 1964 - 1967 Chevelle GM A-body chassis with RideTech™s
TruLink Adjustable Rear Suspension System. Achieve significantly better
handling and launch characteristics along with dramatically improved
ride quality and service life. The comprehensive system features heavy
duty tubular control arms equipped with patent-pending R-Joints plus
application-tuned HQ Series adjustable shock absorbers. We replace your

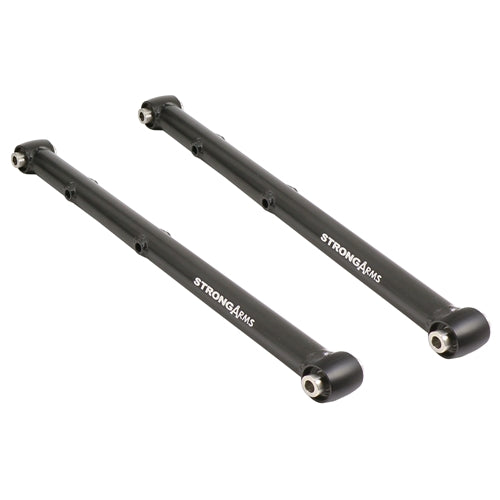

car™s flex-prone stamped upper and lower control arms with
precision-welded tubular steel StrongArms constructed from heavy duty
1.5 OD .156 wall DOM steel tube. The end result is less flex for more
predictable handling and launch characteristics.
StrongArm rear control arms are precision welded at our Jasper,
Indiana factory and then powder-coated for long-lasting appearance. We

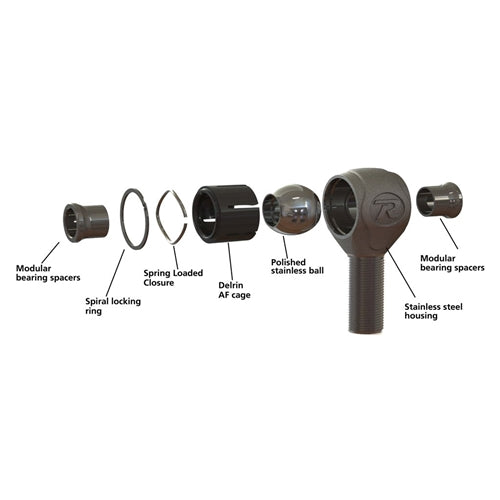

install patent-pending R-Joint rod ends and bearings for noise-free,
high articulation movement with zero stiction. R-Joints eliminate the
binding, stiction, noise and vibration associated with poly bushings
offered in most aftermarket control arms. R-Joints never need
lubrication and have exceptional wear resistance. For ultimate
articulation, the TruLink system features press-in R-Joints for your
axle to upper control arm attachment points. This critical feature is
often overlooked in the upgrade process.
The final piece in the TruLink system is a pair of RideTech HQ Series
adjustable monotube shock absorbers. We custom-valve them specifically
for the A-Body platform with modern tires. We provide rebound adjustment
to help you fine tune compliance. With a few turns of the adjusting
knob, you can tune rebound damping to suit both your car™s needs and
your personal preferences. RideTech HQ Series shocks offer an
industry-exclusive 1,000,001 mile warranty.
We™re confident that TruLink is the most comprehensive bolt-on rear
suspension system ever offered for GM A-Bodies. It™s also the most
versatile design on the market. As your needs and budget grow, you can
add matching HQ Series front shocks, StreetGRIP high performance coil
springs and an adjustable MuscleBarâ„¢ rear sway bar. Down the line, you
can upgrade to adjustable coilovers or Shockwaves with matching TruTurn
front suspension.
Download detailed product information and installation instructions below:
(pdf, 1,258 Kb) [Download]
Part Number: SUS-4415
