PART # 5039304024

1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot

SKU 5039304024
$2.25
1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 2 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 3 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 4
1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 2 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 3 1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot, Angle 4

1/2" Diameter, Heat Shrink Wrap Tubing Sleeve, Sold Per Foot


New premium quality USA made Heat Shrink Wrap Tubing is now sold by the foot. Perfect for Automotive, Marine, Aerospace, and Aviation projects. Specially formulated for optimum high-temperature fluid resistance, and long term heat resistance. Works wonderful for battery cables.

Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jacketing material for vehicle cables and harnesses. It is also well suited for the demands of motorsport cable harnesses.

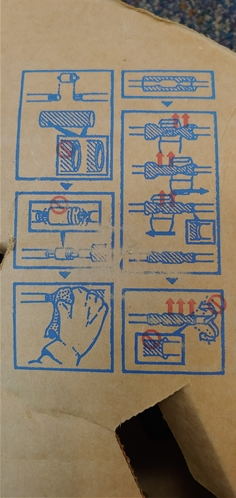

Installation:
  • Minimum shrink temperature: 150 °C [302 °F]
  • Minimum full recovery temperature: 175 °C [347 °F]
  • Operating Temperature Range -75 °C to 150 °C [-103 °F to 302 °F]

*Sold by the foot, so don't forget to check your quantity. If you order ten, you will receive one piece ten feet long.

PART NUMBER: 5039304024

Material: Elastomer
Inside Diameter: 12.7 mm
Recovered Diameter: 6.4 mm
Shrink Ratio: 2:1
Series: DR-25
Chemical Resistant: Yes
Minimum Shrink Temperature: + 175 C
Brand: TE Connectivity / Raychem
Flammability Rating: Flame Retardant
Maximum Temperature: + 150 C
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 75 C
Product Type: Heat Shrink Tubing and Sleeves
