1968 - 1972 Nova Trans-Dapt LS Swap In A Box Kit with Hedman MAXX Headers For Manual Transmission

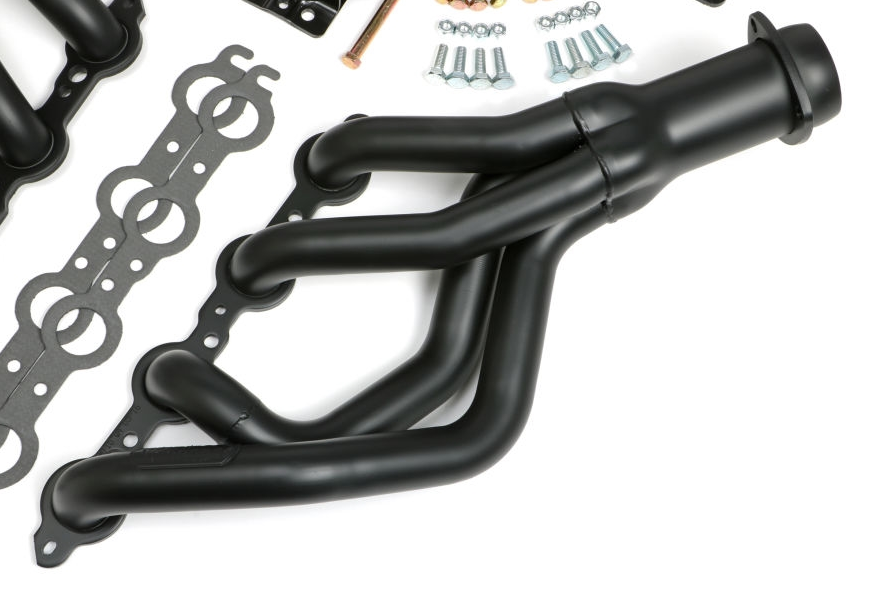

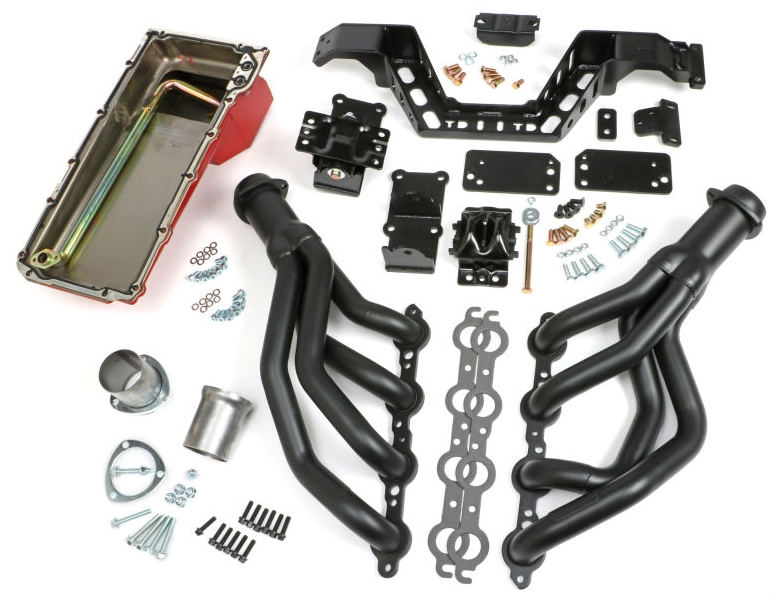

All new Trans-Dapt LS Conversion Swap In A Box Kit for your 68, 69, 70, 71 and 72 Nova model! If you are looking for the finishing touches on your LS Swap, Hedman has you covered. This awesome box kit comes with Hedmans famous Satin Black MAXX Mid-Length 1 3/4" Satin Black Ceramic Headers, the correct Powder Coated Crossmember for your Nova with an MANUAL transmission, the correct Oil Pan for the Gen III/ IV LS Engines, fantastic Engine Motor Mounts, and all the required hardware and gaskets! BOOM! What more are you looking for?
Engine Swap-In-A-Box Kit; Installs LS and a MANAUL Transmission in 1968-74 X-Body (Nova/Ventura); 1967-69 F-Body (Camaro/Firebird), Standard-Duty, Mild Steel, 1-3/4 in, MID-LENGTH Tube Headers- BLACK-MAXX Satin Black Ceramic Coated Headers.
This particular LS Swap Kit uses a specially designed Steel Engine Oil Pan that requires an Oil Filter Relocation. No need to worry, we offer just what you will need to relocate your oil filter, check out part# ENC-1411 (Horizontal) or ENC-1418 (Vertical).
If you know anything about Hedman and Transdapt than you know that they have been making quality products for over 65 years! This Box Kit is a great example of their innovation and creativity that they have at Hedman Performance.
Note: This LS - Swap In A Box Kit is specific for all 1967, 1968, and 1969 F-Body's that have been LS (Gen III/ IV) swapped with an Manual Transmission (4L60, 65, 70 and 4L75)
PART NUMBER: ENC-1392
- TUBE DIAMETER 1-3/4 in.
- AIR CONDITIONING Yes
- AUTOMATIC TRANSMISSION - COLUMN No
- AUTOMATIC TRANSMISSION - FLOOR No
- MANUAL TRANSMISSION - COLUMN No
- MANUAL TRANSMISSION - FLOOR Yes
- BAFFLED No
- COLLECTOR SIZE 3 in.
- COLLECTOR STYLE BALL and SOCKET Style (Gasketless)
- REDUCER OUTLET SIZE 2-1/2 in.
- EXHAUST SYSTEM DIA 3 in.
- CONTENTS Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
- EMISSIONS NOTES Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
- ENGINE Chevy LS Series
- FINISH BLACK MAXX Satin Black Ceramic-Metallic
- FLANGE THICKNESS 0.375 in.
- PRODUCT TYPE Complete SWAP-IN-A-BOX Kits
- HEADER STYLE Mid-Length Tube
- IMPORTANT! Some LS have dipstick in pan and will require drilling of dipstick port on block
- O2 SENSORS INCLUDED No
- PICKUP # 2522
- POWER STEERING Yes
- PRODUCT DETAILS Engine swap kit for installing an LS engine into 1967-69 Chevy Camaro or 1968-74 Chevy Nova, Pontiac Ventura
- MATERIAL Mild Steel
- SUMP STYLE Wet Sump
- TRANSMISSION COMPATIBILITY T-56
- VARIATIONS 42014, 42015, 42016.

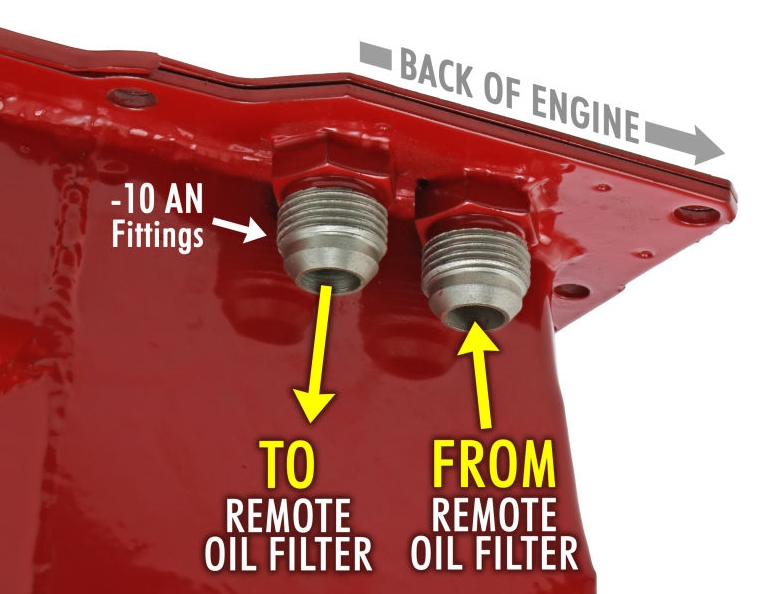

- INSTALLATION NOTES Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
- DIPSTICK PORT No
- SUMP LOCATION Rear
- KICKED OUT No
- WITH A.I.R. SYSTEM No
- WITH EGR No

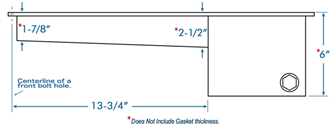

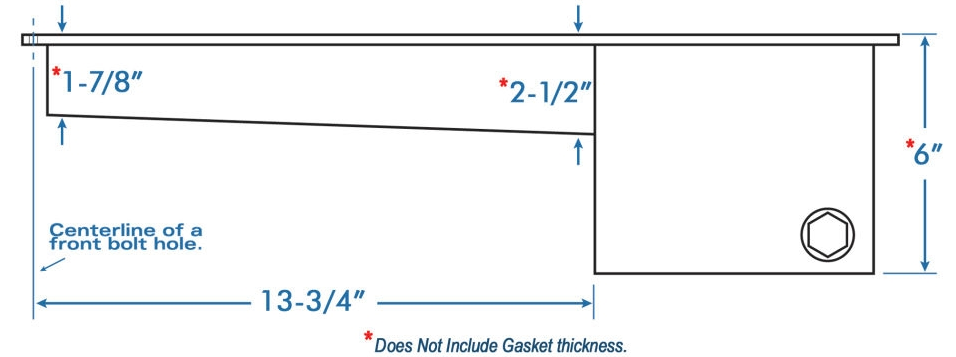

- OIL PAN DEPTH (IN) 2 in. at front of Pan; 6 in. at Rear Sump
- TUNED No
- BOLTS/STUDS INCLUDED Yes
- COLLECTOR BOLTS INCLUDED Yes
- CRANK SHAFT WIPER INCLUDED No
- DRAIN PLUG INCLUDED Yes
- GASKET OR SEAL INCLUDED Yes
- HEADER FASTENERS INCLUDED Yes
- HEDMAN HEDDERS INCLUDED Yes
- INSTALLATION HARDWARE INCLUDED Yes
- MOTOR MOUNTS INCLUDED 4201
- MOUNTING HARDWARE INCLUDED Yes
- OIL PAN INCLUDED Yes
- OIL PAN BOLTS INCLUDED Yes
- OXYGEN SENSOR BUNG INCLUDED No
- PICKUP INCLUDED Yes
- REDUCERS INCLUDED Yes
- TRANSMISSION MOUNT/CROSSMEMBER INCLUDED 6518
- WINDAGE TRAY INCLUDED No
- Y-PIPE INCLUDED No
- PRIMARY TUBE GAUGE 16g
- PRIMARY TUBE DIAMETER (IN) 1.75 in.
- PACKAGE CONTENTS Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
- HEADER MATERIAL Mild Steel
- HEADER FINISH BLACK MAXX Satin Black Ceramic-Metallic
- CYLINDER HEAD Factory Style
- O2 PROVISION No
- OIL PAN CAPACITY 5 Qt. Capacity
- OIL PAN MATERIAL Steel
- TRANSMISSION MOUNT TYPE Crossmember
- TRANSMISSION TYPE Manual Transmission
- VEHICLE FAMILY F-Body (GM) 1967-69
- VEHICLE FAMILY X-Body (GM) 1968-74
- REPLACEMENT GASKET 27470
- REPLACEMENT HEAD FLANGE GASKET Yes
- REPLACEMENT MOTOR MOUNT KIT 4201
- CALIFORNIA PROPOSITION 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- USA Made
- LS Swap In A Box Kit
- Satin Ceramic Coated Black MAXX Headers 1 3/4"

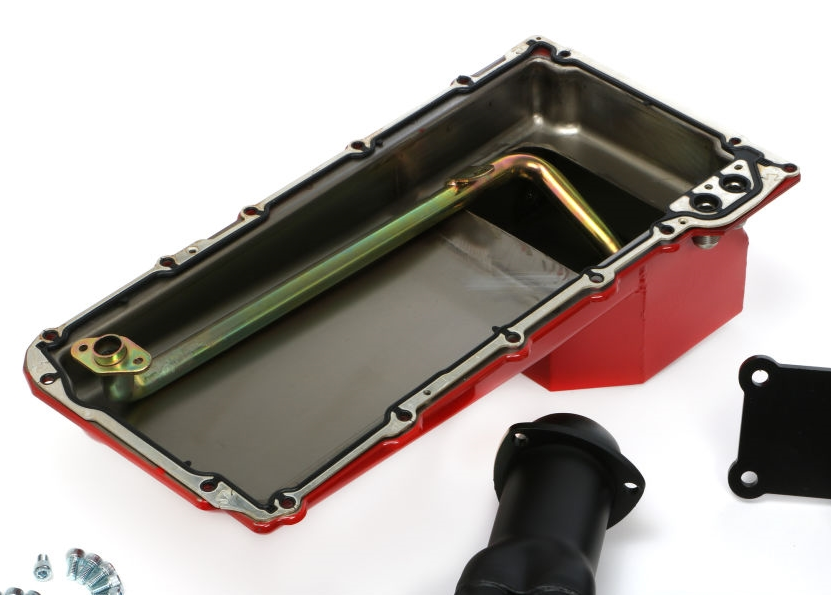

- Steel LS Swap Oil Pan
- LS Swap Mounts

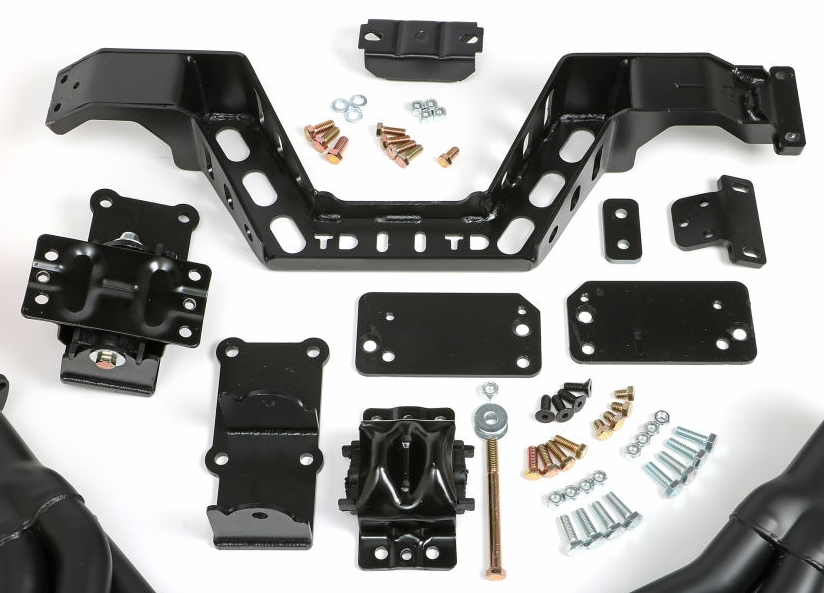

- Powder Coated Cross Member (For Manual Transmissions)
|
|
|
|
|
|
