We now offer a 1968 - 1972 Nova Trans-Dapt LS Swap In A Box Kit with Hedman HTC Polished Silver Ceramic Coated Headers For Automatic Transmission!

Home > Nova 1968 >

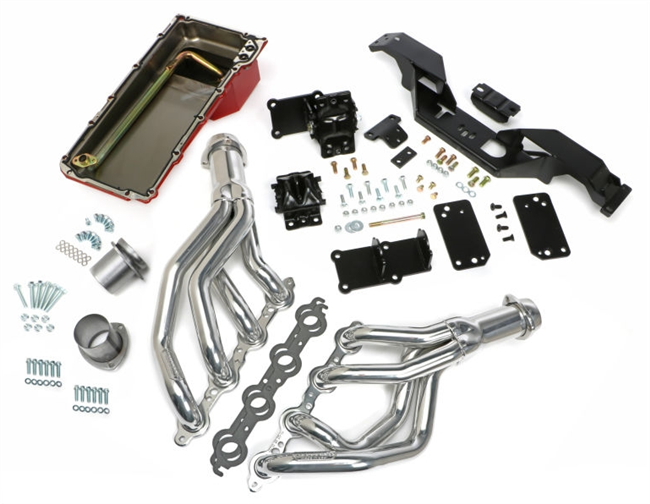

1968 - 1972 Nova Trans-Dapt LS Swap In A Box Kit with Hedman HTC Polished Silver Ceramic Coated Headers For Automatic Transmission

Alternative Views:

Price: $2,743.47

PART NUMBER: ENC-1391

Qty:

Description

Technical Specs

1968 - 1972 Nova Trans-Dapt LS Swap In A Box Kit with Hedman HTC Polished Silver Ceramic Coated Headers For Automatic Transmission

All new Trans-Dapt LS Conversion Swap In A Box Kit for your 1968 - 1972 Nova model! If you are looking for the finishing touches on your LS Swap, Hedman has you covered. This awesome box kit comes with Hedmans famous Mid-Length 1 3/4" HTC Polished Silver Ceramic Coated Headers, the correct Powder Coated Crossmember for your Camaro with an AUTOMATIC transmission, the correct Oil Pan for the Gen III/ IV LS Engines, fantastic Engine Motor Mounts, and all the required hardware and gaskets! BOOM! What more are you looking for?

Engine Swap-In-A-Box Kit; Installs LS and AUTOMATIC Transmission in 1968-74 X-Body (Nova/Ventura); 1967-69 F-Body (Camaro/Firebird); Standard-Duty, Mild Steel, 1-3/4 in, MID-LENGTH Tube Headers- HTC Polished Silver Ceramic Coated Headers.

TRANSMISSION COMPATIBILITY 4L60E
TRANSMISSION COMPATIBILITY 4L65E
TRANSMISSION COMPATIBILITY 4L70E
TRANSMISSION COMPATIBILITY 4L75E
TRANSMISSION NOTES: Not for use with 4L80E or 4L85E Transmissions.

This particular LS Swap Kit uses a specially designed Steel Engine Oil Pan that requires an Oil Filter Relocation. No need to worry, we offer just what you will need to relocate your oil filter, check out part# ENC-1411 (Horizontal) or ENC-1418 (Vertical).

If you know anything about Hedman and Transdapt than you know that they have been making quality products for over 65 years! This Box Kit is a great example of their innovation and creativity that they have at Hedman Performance.

Note: This LS - Swap In A Box Kit is specific for all 1967, 1968, and 1969 F-Body's that have been LS (Gen III/ IV) swapped with an Automatic Transmission (4L60, 65, 70 and 4L75)

PART NUMBER: ENC-1391

TUBE DIAMETER 1-3/4 in.
AIR CONDITIONING Yes
AUTOMATIC TRANSMISSION - COLUMN No
AUTOMATIC TRANSMISSION - FLOOR Yes
MANUAL TRANSMISSION - COLUMN No
MANUAL TRANSMISSION - FLOOR No
BAFFLED No
COLLECTOR SIZE 3 in.
COLLECTOR STYLE BALL and SOCKET Style (Gasketless)
REDUCER OUTLET SIZE 2-1/2 in.
EXHAUST SYSTEM DIA 3 in.
CONTENTS Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
EMISSIONS NOTES Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
ENGINE Chevy LS Series
FINISH HTC Polished Silver Ceramic Coated Headers
FLANGE THICKNESS 0.375 in.
PRODUCT TYPE Complete SWAP-IN-A-BOX Kits
HEADER STYLE Mid-Length Tube
IMPORTANT! Some LS have dipstick in pan and will require drilling of dipstick port on block
O2 SENSORS INCLUDED No
POWER STEERING Yes
PRODUCT DETAILS Engine swap kit for installing an LS engine into 1967-69 Chevy Camaro or 1968-74 Chevy Nova, Pontiac Ventura
MATERIAL Mild Steel
SUMP STYLE Wet Sump
TRANSMISSION COMPATIBILITY 4L60E
TRANSMISSION COMPATIBILITY 4L65E
TRANSMISSION COMPATIBILITY 4L70E
TRANSMISSION COMPATIBILITY 4L75E
TRANSMISSION NOTES Not for use with 4L80E or 4L85E Transmissions.
VARIATIONS 42011, 42012, 42013.
INSTALLATION NOTES Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
DIPSTICK PORT No
SUMP LOCATION Rear
KICKED OUT No
WITH A.I.R. SYSTEM No
WITH EGR No

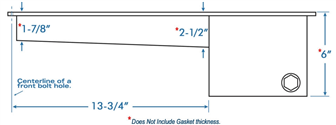

OIL PAN DEPTH (IN) 2 in. at front of Pan; 6 in. at Rear Sump
TUNED No
COLLECTOR BOLTS INCLUDED Yes
CRANK SHAFT WIPER INCLUDED No
DRAIN PLUG INCLUDED Yes
GASKET OR SEAL INCLUDED Yes
HEADER FASTENERS INCLUDED Yes
HEDMAN HEDDERS INCLUDED Yes
INSTALLATION HARDWARE INCLUDED Yes
MOTOR MOUNTS INCLUDED 4201
MOUNTING HARDWARE INCLUDED Yes
OIL PAN INCLUDED Yes
OIL PAN BOLTS INCLUDED Yes
OXYGEN SENSOR BUNG INCLUDED No
PICKUP INCLUDED Yes
REDUCERS INCLUDED Yes
TRANSMISSION MOUNT/CROSSMEMBER INCLUDED 6418
WINDAGE TRAY INCLUDED No
Y-PIPE INCLUDED No
PRIMARY TUBE GAUGE 16g
PRIMARY TUBE DIAMETER (IN) 1.75 in.
PACKAGE CONTENTS Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
HEADER MATERIAL Mild Steel
HEADER FINISH HTC Polished Silver Ceramic Coated
CYLINDER HEAD Factory Style
O2 PROVISION No
OIL PAN CAPACITY 5 Qt. Capacity
OIL PAN MATERIAL Steel
TRANSMISSION MOUNT TYPE Crossmember
TRANSMISSION TYPE Automatic Transmission
VEHICLE FAMILY F-Body (GM) 1967-69
VEHICLE FAMILY X-Body (GM) 1968-74
REPLACEMENT HEAD FLANGE GASKET Yes
REPLACEMENT MOTOR MOUNT KIT 4201
