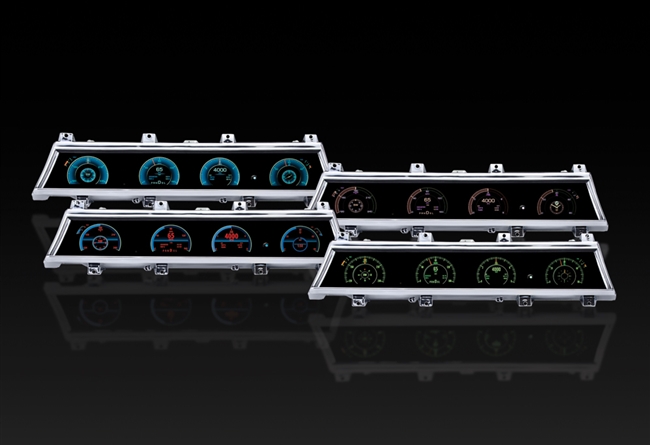

1966 - 1967 Chevelle Dash Instrument Cluster, Dakota Digital (Grafix Series)
The Grafix Series enables users to customize nearly every element of the instrument system. A range of graphic themes is available, and each component can be further personalized with distinct display colors and warning modes. Additionally, each gauge can be set up with an Analog, Digital, or Bar-graph readout style. Displays can show individual readings, be paired to show double the data, or be entirely reconfigured for different readouts!
A new feature in the automotive aftermarket is the integration of a reverse backup video display, enhancing visibility, safety, and peace of mind while reversing. The largest onboard display in the Grafix system showcases video footage right in the instrument cluster! Dakota Digital also offers a variety of backup cameras, sold separately, complete with a full-length wire harness and universal mounting for easy installation.
Onboard GPS technology provides automatic speedometer calibration, no matter the tire size or gearing! A wired VSS source is used to provide an always-present and real-time speedometer input signal, utilizing the GPS information as a known speed reference, providing the user with no-touch calibration for the ultimate convenience!
Built-in Bluetooth technology allows wireless access to the Dakota Digital App, available for download on your smartphone or tablet. The app can be used for simple configuration, calibration, system customization or even vehicle troubleshooting with real-time gauge and sensor data. USB access port provides field updates, allowing for future enhancements, new factory-released graphic theme imports and a variety of features yet to come.
Integrated G-force meter provides a graphical display of the real-time gravity impact. Whether carving the corners, launching or braking with authority, this display will show you effects of your driving prowess.
Like all Dakota Digital systems, an external control module is utilized, allowing the installer to better plan and control vehicle wiring, creating a tidy finished installation and reducing the amount of wiring routed to the gauge cluster itself. A complete sensor package enclosed, including a Water Temperature probe with a full-length harness and a variety of adaptor bushings. A solid-state Oil Pressure Transducer for paramount accuracy and a Speedometer Pulse Generator are included as well, each with respective full-length harnesses.
PART NUMBER: DAS-4177
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Digital display up to 255 MPH / 410 km/h
- Digital display up to 16,000 RPM
- Digital display up to 300 psi (requires optional sensor)
- Digital display up to 300ºF / 150ºC
- Simulated needle shows E, 1/4, 1/2, 3/4, F
- Digital display from 0 to 18 VDC
|
|
|
|
|
|
